Magnetic Locks Energy Saving

RDESL06 - 600LBS ENERGY SAVING MAGNETIC LOCK Magnetic Locks Energy Saving

RDESL06 - 600LBS ENERGY SAVING MAGNETIC LOCK

RDESL06 - 600LBS ENERGY SAVING MAGNETIC LOCK Magnetic Locks Energy Saving
Radiant energy saving mag lock offers the advantage of a totally concealed locking mechanism, providing superior security and appearance while allowing for normal door movement. The patented design incorporates locking tabs on the magnet assembly with mating grooves in the armature plate. Superior hold force with advanced microprocessor controlled electronic features including auto sensed voltage, auto re-locking, adjustable re-lock time delay and options for integrating into an access control system.

•Saving the electric power up to 70% than traditional EM locks
•Terminal block for Request to Exit button switch
•Smart program for tamper attempt
•28.2kg CO2 emissions is saved/per Lock. Equivalent to planting 7 trees/year

MODELS

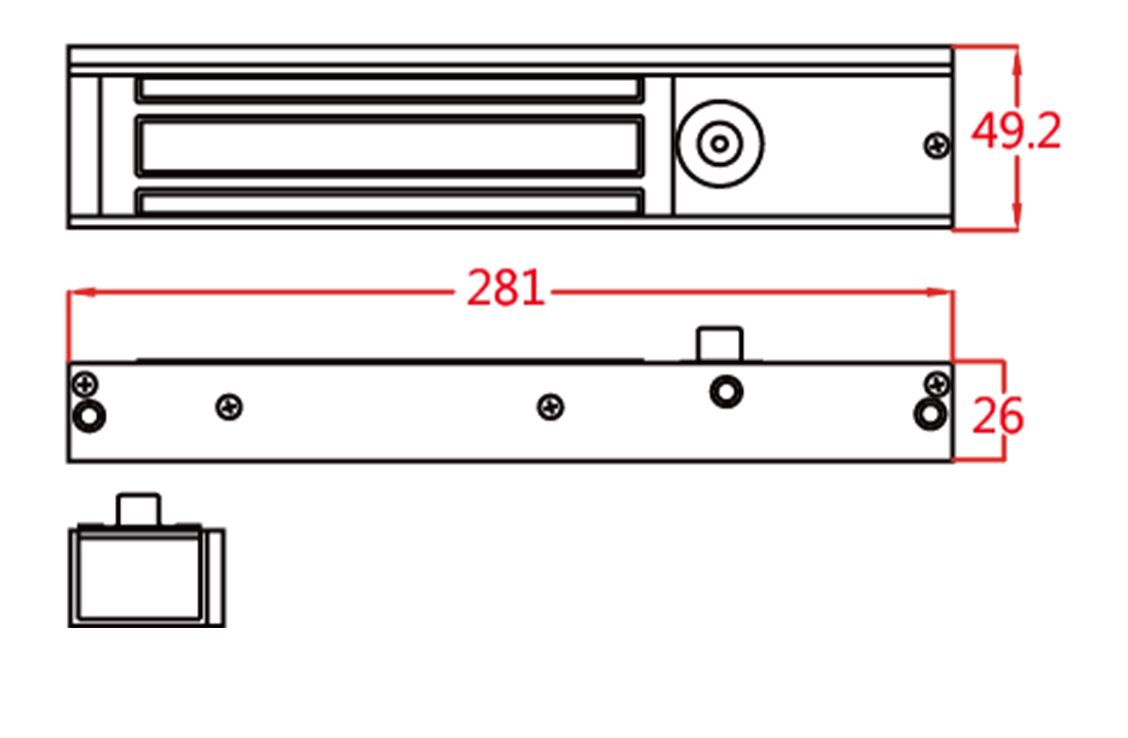

RDESL06 : 600LBS Energy saving (281L x49.2W X26Dmm)


SPECIFICATION

Input Voltage

 12V~24VDC

Current Draw

 150mA / 12VDC 100mA / 24VDC (at saving mode)

LED indicating power & lock status

Operating Temperature

 -30℃ ~ 65℃

Terminal block for Request to Exit button switch

Smart program for tamper attempt

Multiple national patents



RDESL06 - 600LBS ENERGY SAVING MAGNETIC LOCK pdf Download Technical Datasheet RDESL06 - 600LBS ENERGY SAVING MAGNETIC LOCK
