RDGL1200 SERIES 1200 LBS WATERPROOF LOCKS Magnetic Locks Water-Proof

RDGL1200 SERIES 1200 LBS WATERPROOF LOCKS

RDGL1200 SERIES 1200 LBS WATERPROOF LOCKS Magnetic Locks Water-Proof
Radiant single door waterproof outdoor gate lock,specially used to out glass door,wooden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frame-less glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer.

For outdoor use (water-proof) - all inner components are well sealed and be protected from environmental damages.
Three meters long power cable for convenient installation
Horizontal or vertical installation

MODELS

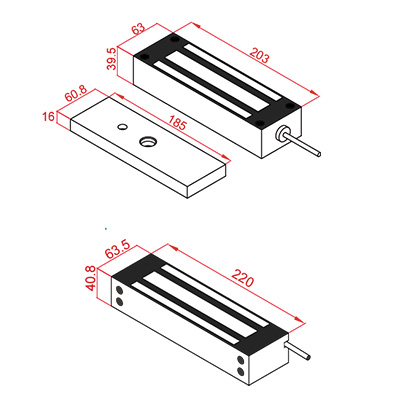

RDGL1200: Gatelock 1200P Unmonitored, Face mounted (203Lmm)
RDGL1200S: Gatelock 1200P Unmonitored, Side mounted (220Lmm)
RDGL1200R: Gatelock 1200P W/Lock status sensor, Face mounted (203Lmm)
RDGL1200SR: Gatelock 1200P W/Lock status sensor, Side mounted(220Lmm)


SPECIFICATION

Stainless steel housing

Built-in voltage spike suppressor

Holding Force

 1200LBS

Voltage

 12V/24VDC (Selectable)

Current Draw

 500mA/12V , 250mA /24V

Special Finish

 Zinc (on the magnet & armature plate)



RDGL1200 SERIES 1200 LBS  WATERPROOF LOCKS pdf Download Technical Datasheet RDGL1200 SERIES 1200 LBS WATERPROOF LOCKS
