Magnetic Locks Mortice Mounted

RD01300M - MORTICE MOUNTED 300 LBS MAG LOCK Magnetic Locks Mortice Mounted

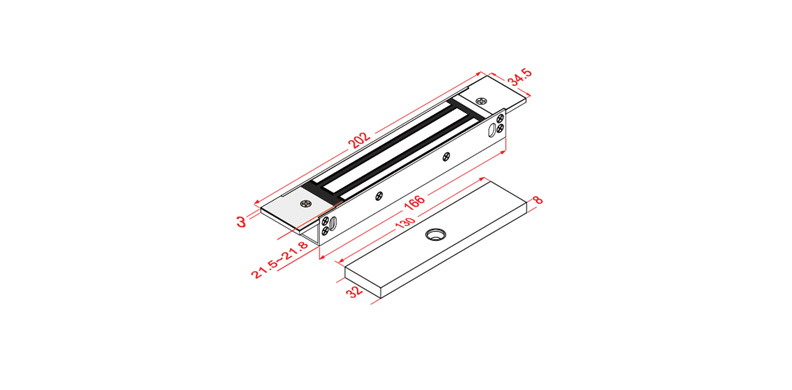

RD01300M - MORTICE MOUNTED 300 LBS MAG LOCK

RD01300M - MORTICE MOUNTED 300 LBS MAG LOCK Magnetic Locks Mortice Mounted
Magnetic Lock 300 LBS with the door status signal output led indicate and timer,specially used to normal glass door, wooden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frame-less glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer.
Hold force 300 LBS options are in single and double door models.

SPECIFICATION

Voltage

12V/24V (Selectable)

Current Draw

360mA/12V , 180mA /24V

Holding Force

about 300LBS

Built-in voltage spike suppressor



Anodized aluminum housing



Special Finish

Zinc (on the magnet & armature plate )


RD01300M - MORTICE MOUNTED 300 LBS MAG LOCK pdf Download Technical Datasheet RD01300M - MORTICE MOUNTED 300 LBS MAG LOCK
