ML300h-Series-300P Magnetic Locks Surface Mounted

❮

❯

ML300H Series 300P

Horizontal or vertical installation Suitable for in-swing / out-swing/sliding.doors, cabinets, drawers, etc. Hold force 300 LBS option are in single and double door models.

Adjustable mounting plate for easy and appropriate installation for in-swing door, out-swing door and frame less door

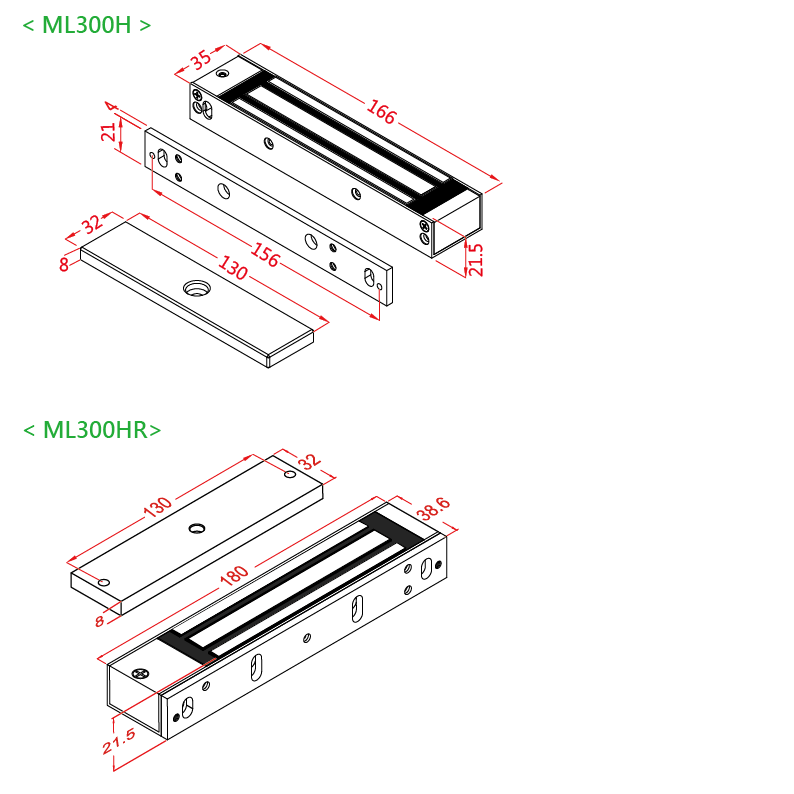

Model: ML300H,ML300HR,

ORDERING INFORMATION:

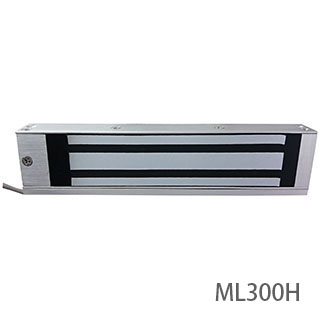

ML300H : Maglock 300lbs, surface mounted

ML300HR : Maglock 300lbs, surface mounted , W/Lock status sensor

SPECIFICATION
Voltage	12V/24V (Selectable)
Current Draw	360mA/12V , 180mA /24V
Holding Force	about 300LBS
Built-in voltage spike suppressor
Anodized aluminum housing
Special Finish	Zinc (on the magnet & armature plate )
