Electric Strikes & Bolts Electric Strike - USA Type

RD12124 SERIES ELECTRIC STRIKE - USA TYPE Electric Strikes & Bolts Electric Strike - USA Type

RD12124 SERIES ELECTRIC STRIKE - USA TYPE

RD12124 SERIES ELECTRIC STRIKE - USA TYPE Electric Strikes & Bolts Electric Strike - USA Type
Radiant electric strike is the heavy-duty-type ANSI standard fail-safe electric strike lock with feedback signal output. It works with magnetic force generated by electromagnetic field for locking/unlocking, particularly with short circuit protection. It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation. It is suitable for all types of wooden door, metal door, PVC door etc. Site convertible from one mode to the other (Fail secure default, unless specified on order)

MODEL

RD12124SL: Aluminium faceplate fail secure, W/lock monitor 12VDC
RDT12124SLD: Stainless steel faceplate fail secure W/door, lock monitor 12VDC
RD12124FSL: Aluminium faceplate fail safe, W/lock monitor 12VDC
RDT12124FSLD-24:Stainless steel faceplate, fail safe W/door, lock monitor 24VDC

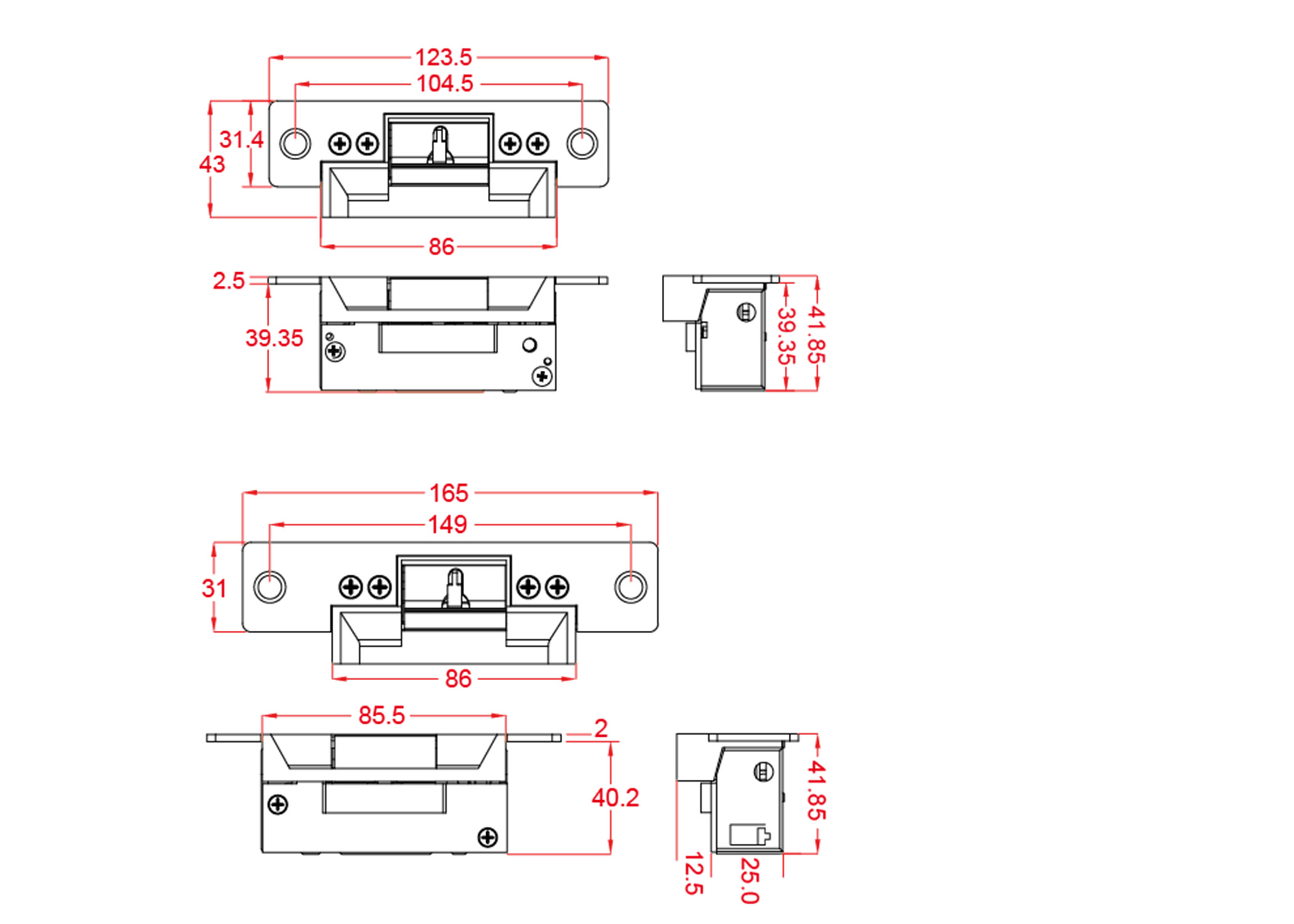

SPECIFICATION

Aluminium Faceplate

 123.5L*31.4W*2.5T mm

Stainless Faceplate

 165L*31W*2T mm

Door Latch

 1/2"(12.7mm)

Keeper Depth

 12.7 mm

Fail secure

 12VDC / 400mA

Fail secure

 24VDC / 200mA (Specify on order)




RD12124 SERIES ELECTRIC STRIKE - USA TYPE pdf Download Technical Datasheet RD12124 SERIES ELECTRIC STRIKE - USA TYPE
