RD1304S Series Electric Strike-Monitoring

RD1304S Series Electric Strike-Monitoring Electric Strikes & Bolts Electric Strike - General Type

Radiant electric strike is the heavy-duty-type ANSI standard fail-safe electric strike lock with feedback signal output. It works with magnetic force generated by electromagnetic field for locking/unlocking, particularly with short circuit protection. It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation. It is suitable for all types of wooden door, metal door, PVC door etc.

� Direct installation on Wooden, PVC, metal door frame with mounting hole.
� Made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation.
� widely used with all kinds of mechanical lock.

SPECIFICATION

Model

RD1304SL: Stainless steel faceplate fail secure with Lock monitor

RD1304SLD: Stainless steel faceplate fail secure with door, lock monitor

Lock Status Sensors

Dry contact, NO/NC/COM

Rated Operating Voltage

DC 12V/ 24V SC/AC (Selectable)

Current draw

280mA/ 12VDC, 140mA/ 24VDC, 170mA/ 12VAC, 85mA/ 24VDC,

Optional Functions

Lock Status Sensors

Face place material

Stainless Steel

Surface Temp

Low Temperature

Ambient temperature in °C

-10°C - +55°C

Suitable for

Wooden & Aluminium & Glass & Fireproof &Metal door

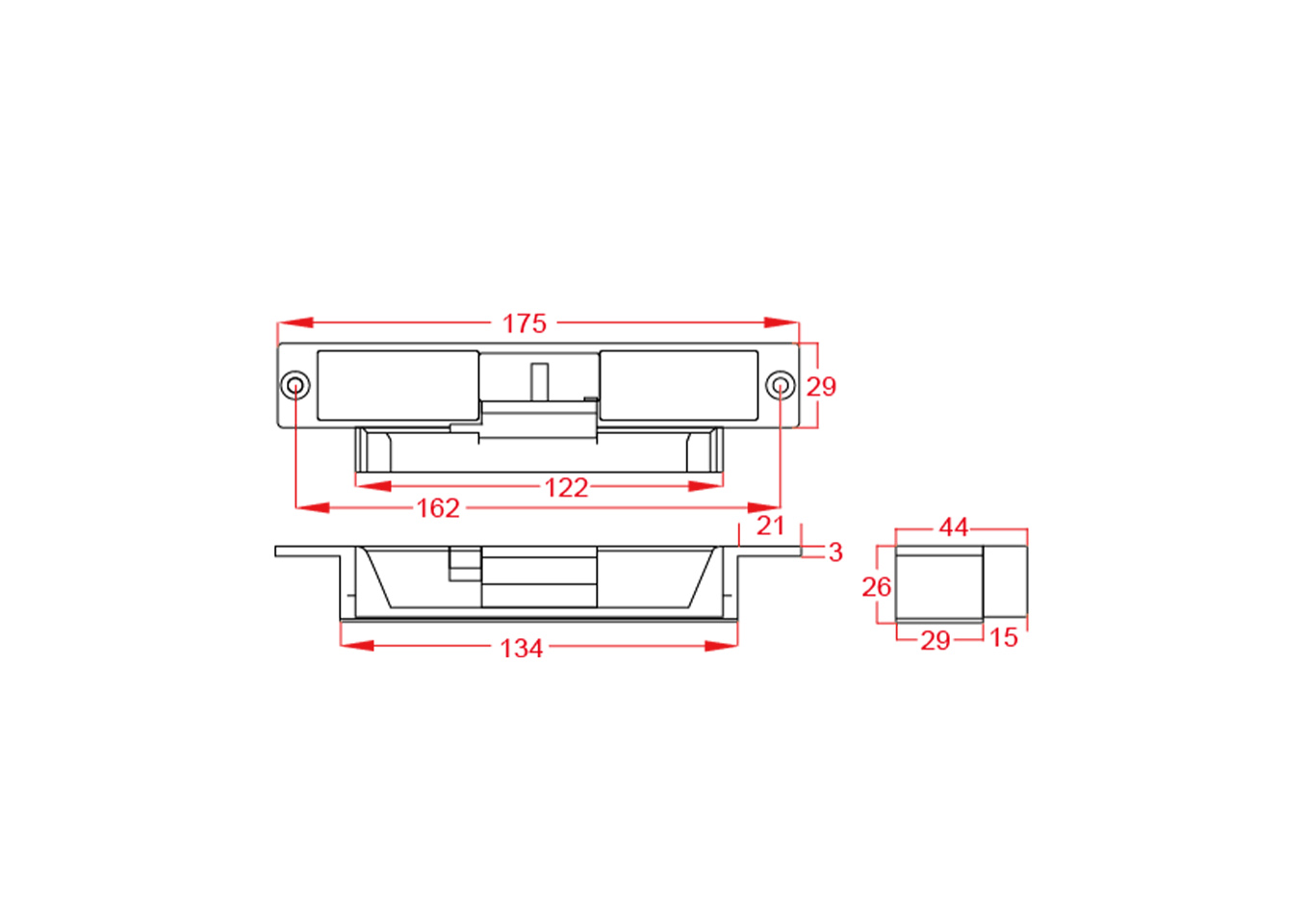

Strike Plate Dimensions(L x W x D)

175Lx29Wx3.0T(mm)

Keeper Depth

10.8mm


RD1304S Series Electric Strike-Monitoring pdf Download Technical Datasheet RD1304S Series Electric Strike-Monitoring
