RD125100 Series Electric Strike

RD125100 Series Electric Strike Electric Strikes & Bolts Electric Strike - General Type
Radiant electric strike is the heavy-duty-type ANSI standard fail-safe electric strike lock with feedback signal output. It works with magnetic force generated by electromagnetic field for locking/unlocking, particularly with short circuit protection. It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation. It is suitable for all types of wooden door, metal door, PVC door etc.


Pass 1600lbs super linear static thrust test.
Mode option: Fail-unlocked/Fail-locked.
Direct installation on Wooden, PVC, metal door frame with mounting hole.
Made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation.
Strike trough 15mm deep, widely used with all kinds of mechanical lock.


SPECIFICATION

Model

RD125100 - Stainless steel face-plate  fail secure basic

RD125101 - Stainless steel face-plate fail secure with Latch sensor

RD125102 - Stainless steel face-plate fail secure with Latch sensor and keeper sensor

Shear strength

1600Lbs

Lock Status Sensors

Dry contact, NO/NC/COM

Rated Operating Voltage

DC 12V/ 24V SC/AC (Selectable)

Current draw

280mA/ 12VDC, 140mA/ 24VDC

Optional Functions

Lock Status Sensors

Face place material

Stainless Steel

Surface Temp

Low Temperature

Ambient temperature in °C

-10°C - +55°C

Suitable for

Wooden & Aluminium & Glass & Fireproof &Metal door

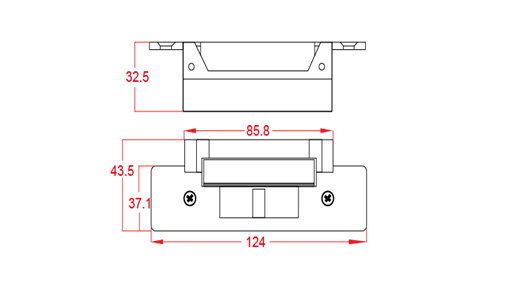

Strike Plate Dimensions(L x W x D)

124Lx32Wx2.0T(mm)

Weight in kg

0.38kg

CE-mark for building

YES



RD125100 Series Electric Strike pdf Download Technical Datasheet RD125100 Series Electric Strike
