Exit Buttons & Break Glass TouchlessType

TOUCH LESS DOOR EXIT - IR SENSOR Exit Buttons & Break Glass TouchlessType

TOUCH LESS DOOR EXIT - IR SENSOR

TOUCH LESS DOOR EXIT - IR SENSOR Exit Buttons & Break Glass TouchlessType

Radiant Touch-less  switch is a IR sensor with waterproof & dust proof design & LED indicators. It is easy to install with NO/NC/COM Output. Touch-less  Switch is the Best Choice for Access Control Systems.  Radiant Touch-less  switch is a satin finish with stainless steel brush finished face plate, suitable for a variety of doors. It is with simple & ultra-narrow design, refined and elegant. Its control is suitable for electrical control circuit such as doors, gates, locks anti-theft alarm, industrial control equipment and so on. User Friendly, touch for opening the door.

Use IR Sensor technology; device is active without touch

Backup operational function

Dual LED, illuminated sensor, Red/Green indicates Inactive / Active status

Weatherized with 1mm vandal resistant faceplate

Designed to control electric locks/strikes, magnetic locks, or automatic door operators


MODELS

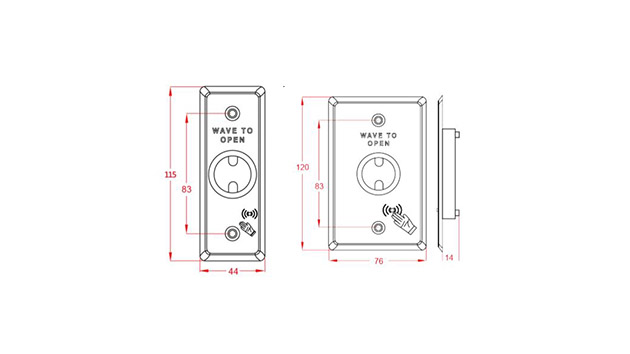

RD04401: Door Exit - IR Sensor - 120H*76W*14D

RD04400: Door Exit - IR Sensor - 115H*44W*14D


SPECIFICATION

Sensing Range up to 10cm ± 10%



Operation Temperature

-25°C~55°C

Input Voltage

12V~24VDC

Holding

50mA

Star

100mA

Contact rating

2A 30VAC / VDC


TOUCH LESS DOOR EXIT - IR SENSOR pdf Download Technical Datasheet TOUCH LESS DOOR EXIT - IR SENSOR
