Exit Buttons & Break Glass Touch Type

TOUCH TYPE SERIES EXIT SWITCH Exit Buttons & Break Glass Touch Type

TOUCH TYPE SERIES EXIT SWITCH

TOUCH TYPE SERIES EXIT SWITCH Exit Buttons & Break Glass Touch Type

Radiant Touch switch is an touch sensor switch button with waterproof & dust proof design & LED indicators. It is easy to install with NO/NC/COM Output. Touch Switch is the Best Choice for Access Control Systems.

Radiant Touch switch is a satin finish with stainless steel brush finished face plate, suitable for a variety of doors. It is with simple & ultra-narrow design, refined and elegant.    Its control is suitable for electrical control circuit such as doors, gates, locks anti-theft alarm, industrial control equipment and so on. User Friendly, touch for opening the door.

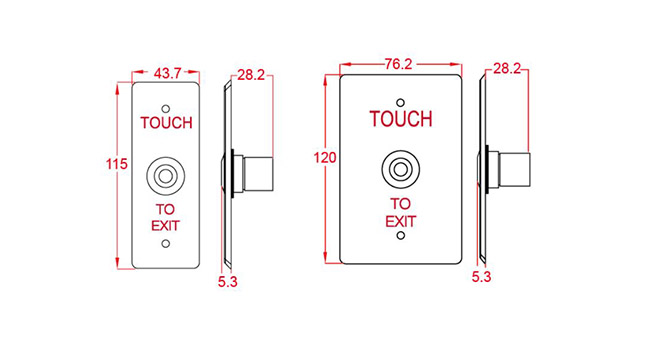

MODEL

RD04443: Door Exit - Touch -115H*43.7W * 28.2D

RD04442: Door Exit - Touch - 120L*76W * 28.2D


SPECIFICATION

Voltage

10~24VDC

Staring current

45mA / 12VDC

Holding current

25mA / 24VDC

Switch data

1A / 30VDC , 0.3A / 125VAC


TOUCH TYPE SERIES EXIT SWITCH pdf Download Technical Datasheet TOUCH TYPE SERIES EXIT SWITCH
