Exit Buttons & Break Glass Metal Push Button

METAL PUSH BUTTON ALUMINIUM FACE PLATE Exit Buttons & Break Glass Metal Push Button

METAL PUSH BUTTON ALUMINIUM FACE PLATE

METAL PUSH BUTTON ALUMINIUM FACE PLATE Exit Buttons & Break Glass Metal Push Button

Radiant Push button Switch is a satin finish Aluminium access switch button, suitable for a variety of door frame. It is with simple & ultra-narrow design, refined and elegant.

Exit Push Button Control is suitable for electrical control circuit such as doors, gates, locks anti-theft alarm, industrial control equipment and so on. User Friendly, push for opening the door.


MODELS

RD04307: Push button with narrow faceplate

RD04308: Push button with wide faceplate


SPECIFICATION



Model

RD04307/ RD04308

Material

Aluminium

Switch data

5A/125VAC , 3A/250VAC

Optional Functions

NO/NC/COM Output

Suitable for Door

hollow door frame and electrical box use

Operating temp

-10 +55 (14-131F)

Operating Humidity

0-95% (Non- condensing)

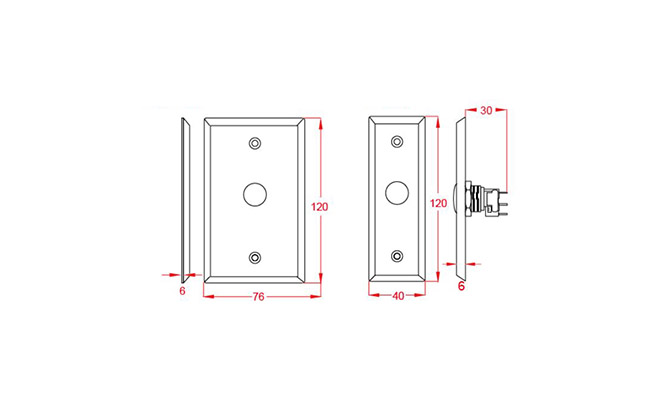

Dimensions

PB40 - 120H*40W*30D
PB76 - 120H*76W*30D



METAL PUSH BUTTON ALUMINIUM FACE PLATE pdf Download Technical Datasheet METAL PUSH BUTTON ALUMINIUM FACE PLATE
