Door Contact Sensors

RD11004 - Door Sensor Switch Door Contact Sensors

RD11004 - Door Sensor Switch

RD11004 - Door Sensor Switch Door Contact Sensors

Radiant Door Sensor Switch is an intrusion Detector for doors and windows status monitoring in security system, which is made of a reed switch and a magnet. When doors and windows are closed, switch contact is affected by magnetic field of the magnet then forms a conducting state; When doors and windows are forced open, magnet is far from reed magnetic switch, the switch is disconnected and cause alarm.

Closed loop
Pin holds armoured cable firmly in place
Includes adjustable magnetic assembly bracket
Ten installation options for the magnet

MODEL:
RD11005: Door Sensor Switch

SPECIFICATION

Size

106*47.5*10mm  106*16*16mm   106*50*50mm

Max voltage

100V

Rated current

0-0.5A

Power

10W

Reed Form

NC COM (NO, COM/NC, NO, COM Customization)

Operating Gap

50-70mm

Case

Zinc Alloy, silver-grey

Wire rode

1007UL #22AWG 550mm,380mm Stainless steel tube

Packing

1pcs/bag    50pcs/carton   18kgs/carton

Application

Ideal for roll door


RD11004 - Door Sensor Switch pdf Download Technical Datasheet RD11004 - Door Sensor Switch





Top ↑

Custom Modules

Full range of access control solution

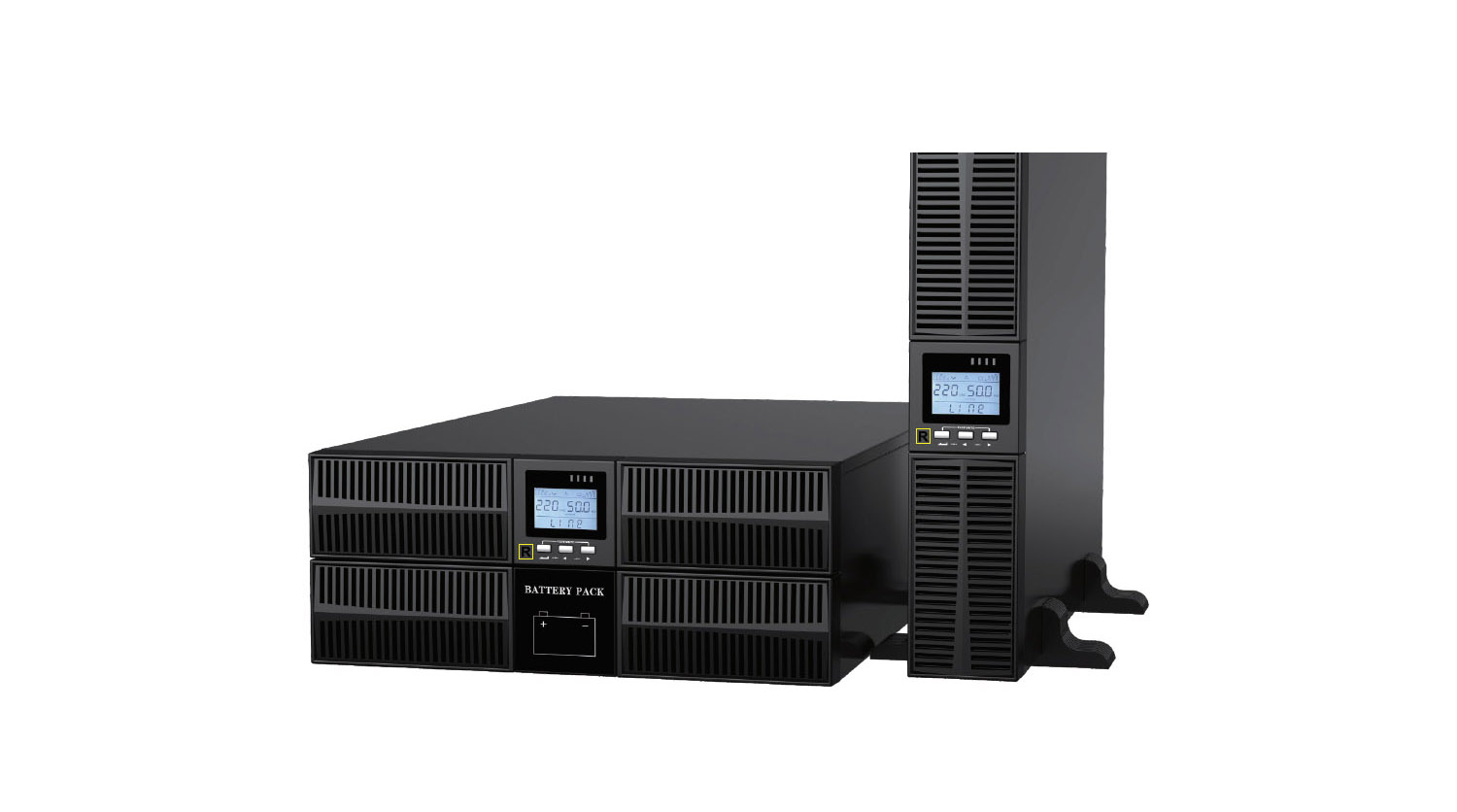

Uninterrupted Power Supply
