Power Supply Unit (35W & 60W) Power Supply

PS Series Power Supply Unit - Small

Power Supply Unit (35W & 60W) Power Supply

Access Control Power Supply  is a non-high-frequency interference ripple of linear DC power supply, It is practical, Simple interface, Design features such as stability, performance, A power status indicator light, May direct that power failure, Is a good cost performance of the module.  It adopts imported control component, with high current output and voltage stabilization. The Power Supply Featured with good heat-resistant quality, dapper appearance, stable performance & suitable for various occasions installation.

Modular sleek encloser design helps to mount circuit boards and the battery also provides for easier access to the terminal connectors for connecting of 12V/24V DC powered devices (i.e. electromagnetic locks, electrical strikes, electromagnetic locks, card readers, etc.).


Provides low-voltage, Class 2, filtered and regulated power

120-240 VAC with primary input fused

Single polarized option board connector

AC input and DC output monitoring circuit

Alarm signal for AC OK and Battery low

UL 294, ULC-S318, RoHS, and FCC Part 15 certified


SPECIFICATION

Product Code

RD07101

RD07103

RD07102

RD07104

Output

DC Voltage

12V

24V

12V

24V

Voltage range

12~15V

24~29V

12~15V

24~29V

Current Range

(w/o charging current)

0~2.6A

0~1.3A

0~4.3A

0~2.15A

Battery Charge Voltage (Max)

0.9A

0.45A

1.5A

0.75A

Rated Power

35W

35W

60W

60W

Input

Voltage Range

90~240V

Frequency Range

47~63Hz

AC Primary fuse

3.15A, 240v, 5 x 20mm

Protection

Overload

100% ~ 150% Rated output power

Battery cut off

<10.5V+/-0.5V

<21+/-1V

<10.5V+/-0.5V

<21+/-1V

Lights

AC OK

Yes

Low Battery

<11V

<22V

<11V

<22V

Certifications

ANSI/UL294, ULC-S318, RoHS FCC, Part 15, Class 2

Dimension

mm

231Lx230Wx77H

320Lx260Wx77H

231Lx230Wx77H

320Lx260Wx77H

Environment

Operating Temperature

-10~50 C

Humidity

20%~90% non-condensing


PS Series Power Supply Unit - Small pdf Download Technical Datasheet PS Series Power Supply Unit - Small





Top ↑

Custom Modules

Full range of access control solution

Uninterrupted Power Supply

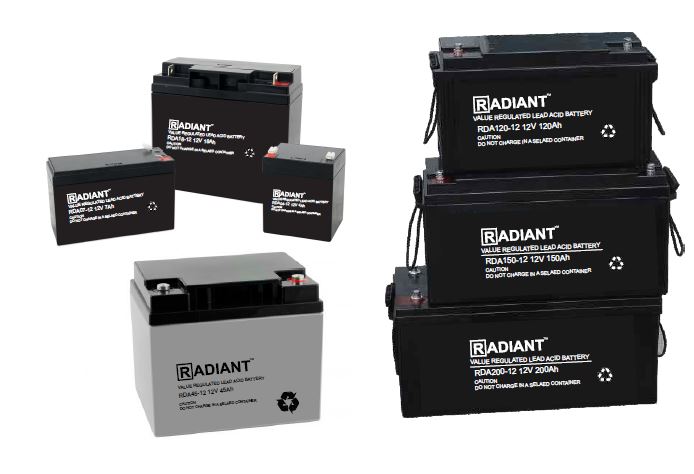

Choose from wide range of backup solutsions
